C Type Power Press Machine
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler, Trader |
| Country of Origin | India |
| Type | C Type Power Press Machine |
| Certification | ISO 9001:2015,CE Cerified |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Color
Green
Condition
New
Automatic Grade
Automatic
Power
1-3kw, 9-12kw, 6-9kw
Warranty
1 Year
Brand Name
OM
Port
Any Indian Port
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Other
Delivery Time
Ready Stock
Packaging Details
As Per Customer Requirement
Power Press Machine Manufacturer
C Type Power Press Machine Exporter
C Type Power Press Machine in India
C Type Power Press Machine Price
OM Brand - C Type Power Press Machine

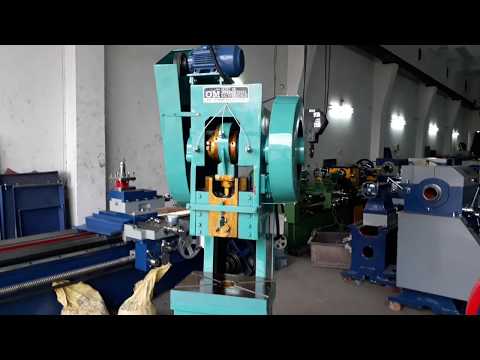

We are one of the well-known manufacturers and suppliers of C Type Power Press Machine. The offered c type power press machine is a machine tool, which is capable of changing the work piece shape by pressure application. Our supplied c type power press machine is provided with gear drives for uniform load distribution, throughout the surface of the material.
Features
- Steel crankshaft
- Hard steel clutch
- Low maintenance
Technical Specification
| Model | NOOPPC - 5 | OPPC - 10 | OPPC - 20 | OPPC - 30 | OPPC - 50 | OPPC - 75 | OPPC - 100 | OPPC - 150 |
| Capacity | 5 TON | 10 TON | 20 TON | 30 TON | 50 TON | 75 TON | 100 TON | 150 TON |
| Bed Size | 280 x 355 | 310 x 435 | 355 x 565 | 410 x 615 | 475 X 685 | 560 X 765 | 600 x 910 | 720 x 970 |
| Bed To Ram | 180 mm | 230 mm | 270 mm | 310 mm | 335 mm | 385 mm | 455 mm | 565 mm |
| Bolster Thickness | 58 mm | 58 mm | 63 mm | 63 mm | 70 mm | 78 mm | 83 mm | 90 mm |
| Crank Shaft Dia | 65 mm | 75 mm | 80 mm | 90 mm | 110 mm | 125 mm | 150 mm | 175 mm |
| Stroke Length | 45 mm | 52 mm | 63 mm | 83 mm | 95 mm | 110 mm | 115 mm | 127 mm |
| Gear Dia | 355 mm | 455 mm | 535 mm | 610 mm | 665 mm | 765 mm | 865 mm | 1015 mm |
| Fly Wheel Dia | 460 mm | 535 mm | 665 mm | 715 mm | 815 mm | 840 mm | 950 mm | 1150 mm |
