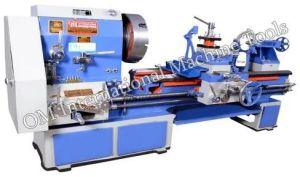

Medium Duty Conventional Lathe Machine
Price : 1.25 Lac - 1.65 Lac / Piece
Get Best Price
MOQ : 1 unit
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler, Trader |
| Country of Origin | India |
| Type | Horizontal Lathe |
| Brand Name | OM Brand |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Certification
ISO 9001:2015
Material
Cast Iron
LED Indicator
No
Phase
Three Phase
Color
Cherry
Voltage
440V
Condition
New
Driven Type
Electric
Warranty
1 Year
Corrosion Resistance
Yes
Automation Grade
Automatic
Shape
Square
Usage
Turning, Knurling, Facing, Drilling, Deformation, Cutting, Boring
Packaging Type
Carton Box, Metal Sheet Box, Wooden Box
Speciality
Easy To Use, High Efficiency, Reliable, Robust Construction
Dimension (LxWxH)
275x90x285mm, 480x190x285mm
Power
1-3 KW, 3-5 KW, 5-7 KW
Finishing
Chrome Finish
Machine Weight
1000-2000 Kg
Bed Length
6 Feet
Hardness
280 BHN
Swing Over Bed
24 Inches
Spindle Speed
6 Speeds
Bed Width
14 Inches
After-Sales Service Provided
Yes
Spindle Bore
65 TO 175 MM
Center Distance
1000 MM
Port
ANY INDIAN PORT
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Other
Delivery Time
READY STOCK
Packaging Details
As Per Customer Demand
OM Brand - Medium Duty Lathe Machine Manufacturer In India By OM International Machine Tools - India
Being the most respected organization guided by experienced and knowledgeable professionals, we provide an enormous assortment of Heavy Duty Lathe Machine. This machine is manufactured under the visionary guidance of trained professionals using supreme grade components and advanced techniques in adherence to set industry norms. Our offered machine is used for drilling, cutting, knurling and deformation work in different industries.
Technical Specifications:
| Model Number | OML-10 | OML-12 | OML-14 | OML-16 | OML-18 | OML-20 |
| Bed Length | 4.5 feet | 6 feet | 6 feet | 8 feet | 8 feet | 8.5 feet |
| Width of Bed | 12 inches | 14 inches | 16 inches | 14 inches | 16 inches | 16 inches |
| Height of Center | 10 inches | 12 inches | 14 inches | 12 inches | 14 inches | 14 inches |
| Spindle Bore | 2.1/8 inches | 3.1/8 inches | 3 inches | 3.5/8 inches | 4.6/8 inches | 4.6/8 inches |
| Swing Over Bed | 24 inches | 28 inches | 32 inches | 28 inches | 32 inches | 32 inches |
| Spindle Speed | 6 | 6 | 6 | 6 | 6 | 6 |
| Admit Between Centre | 750 mm | 850 | 750 | 1500 | 1350 | 1500 |
| HP Required | 2 HP | 2 HP | 3 HP | 2 HP | 3 HP | 3 HP |
Technical Specification
| Model Number | OML-10 | OML-12 | OML-14 | OML-16 | OML-18 | OML-20 |
| Bed Length | 4.5 feet | 6 feet | 6 feet | 8 feet | 8 feet | 8.5 feet |
| Width of Bed | 12 inches | 14 inches | 16 inches | 14 inches | 16 inches | 16 inches |
| Height of Center | 10 inches | 12 inches | 14 inches | 12 inches | 14 inches | 14 inches |
| Spindle Bore | 2.1/8 inches | 3.1/8 inches | 3 inches | 3.5/8 inches | 4.6/8 inches | 4.6/8 inches |
| Swing Over Bed | 24 inches | 28 inches | 32 inches | 28 inches | 32 inches | 32 inches |
| Spindle Speed | 6 | 6 | 6 | 6 | 6 | 6 |
| Admit Between Centre | 750 mm | 850 | 750 | 1500 | 1350 | 1500 |
| HP Required | 2 HP | 2 HP | 3 HP | 2 HP | 3 HP | 3 HP |
