Twitter| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Type | Horizontal Lathe |
| Brand Name | OM |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Certification
ISO 9001:2015
Material
Cast Iron
Phase
Three Phase
Color
Blue
Condition
New
Warranty
1 Year
Automation Grade
Automatic
Usage
Turning, Sanding, Drilling, Deformation, Cutting
Packaging Type
Carton Box, Metal Sheet Box, Wooden Box
Finishing
Polished
Machine Weight
2800 Kg
Bed Length
12 Feet
Swing Over Bed
900 Mm
Height of Centre
450 mm
Spindle Bore
105 mm
Applicable Industry
Power Plant, Paper Mills, Steel Rolling Mills, Sugar Mills, Shipbuilding, Textile, Mining, Oil Indus
Power Plant, Paper Mills, Steel Rolling Mills, Sugar Mills, Shipbuilding, Textile, Mining, Oil Indus
500 mm
Number of Spindle Speeds
6
Distance Between Centre
2150 mm
Maximum Swing in Gap
1375 mm
Lead Screw Diameter
50 mm
Motor Power
3 HP
Port
Any Indian Port
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Other
Delivery Time
Ready Stock
Packaging Details
As Per Customer Requirement
Heavy Duty Precision Lathe Machine in Batala
Heavy Duty Precision Lathe Machine in India
Heavy Duty Precision Lathe Machine Supplier
Heavy Duty Precision Lathe Machine Trader

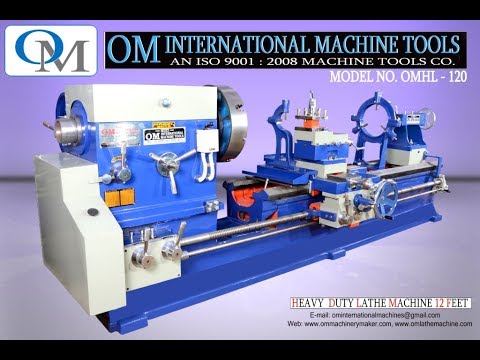

OM Brand - Heavy Duty Precision Lathe Machine 12 Feet
We are one of the leading manufacturers and suppliers of Heavy Duty Precision Lathe Machine. The offered planner lathe machine is made from high tensile steel, which is duly hardened for performing under high mechanical stress. Our supplied planner lathe machine is capable of producing plane surfaces, solids of revolution and helices.
Features:
- Induction hardened spindle design
- Flame hardened bed ways
- Longer functional life
Technical Specification
| Model Number | OMHL-118 | OMHL-120 | OMHL-122 | OMHL-124 | OMHL-126 | OMHL-228 |
| Length of Bed | 10 feet | 12 feet | 14 feet | 16 feet | 18 feet | 20 feet |
| Width of Bed | 18 inches | 20 inches | 22 inches | 24 inches | 26 inches | 28 inches |
| Height of Center | 16 inches | 18 inches | 20 inches | 22 inches | 24 inches | 26 inches |
| Admit between Centre | 72 inches | 86 inches | 110 inches | 126 inches | 150 inches | 172 inches |
| No. of Spindle Speed | 6 | 6 | 6 | 6 | 6 | 6 |
| Leading Screw Dia | 1¾ inches | 2 inches | 2 inches | 2½ inches | 2¾ inches | 2¾ inches |
| HP Required | 3 HP | 3 HP | 5 HP | 5 HP | 7.5 HP | 10 HP |
| Spindle Bore | 4.1/8 inches | 4.1/8 inches | 4.1/8 inches | 4.1/8 inches | 4.1/8 inches | 4.1/8 inches |
| Swing in Gap | 52 inches | 55 inches | 60 inches | 68 inches | 72 inches | 76 inches |
| Swing over Bed | 32 inches | 36 inches | 40 inches | 44 inches | 48 inches | 52 inches |
